Distribuidor oficial CTC / Sensores de Vibraciones y accesorios de conexión
Sensores Multiproposito de 100mv/g

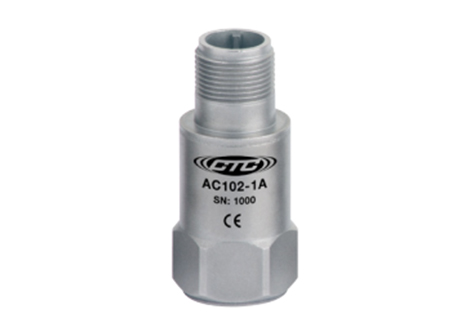

AC102
Description Multi-Purpose Accelerometer, Top Exit Connector / Cable, 100 mV/g Sensitivity 100 mV/g Frequency Response (±3dB) 30-900,000 CPM Dynamic Range ± 50 g, peak Max Temp 121°C

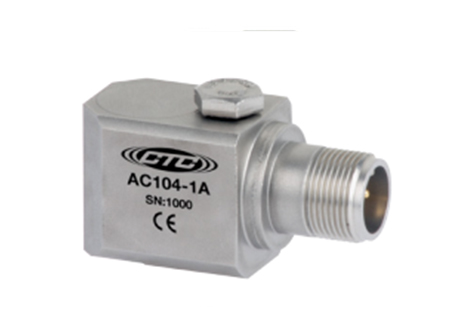

AC104
Description Multi-Purpose Accelerometer, Side Exit Connector / Cable, 100 mV/g Sensitivity 100 mV/g Frequency Response (±3dB) 30-600,000 CPM Dynamic Range ± 50 g, peak Max Temp 121°C

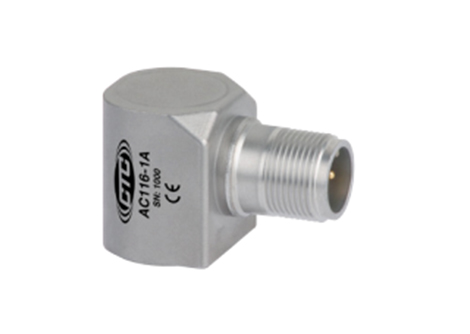

AC116
Description Magnet Mount Accelerometer, Side Exit Connector, 100 mV/g Sensitivity 100 mV/g Frequency Response (±3dB) 30-900,000 CPM Dynamic Range ± 50 g, peak Max Temp 121°C
Sensores Duales Vibración/Temperatura

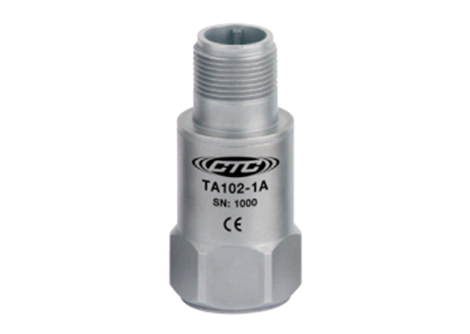

TA102
Description Dual Output, Temperature / Acceleration, Top Exit Connector / Cable, 100 mV/g, 10 mV/°C Sensitivity 100 mV/g Frequency Response (±3dB) 30-900,000 CPM Dynamic Range ± 50 g, peak Max Temp 121°C
TA104
Description Dual Output, Temperature / Acceleration, Side Exit Connector / Cable, 100 mV/g, 10 mV/°C Sensitivity 100 mV/g Frequency Response (±3dB) 30-600,000 CPM Dynamic Range ± 50 g, peak Max Temp 121°C
Sensores baja frecuencia de 500mv/g

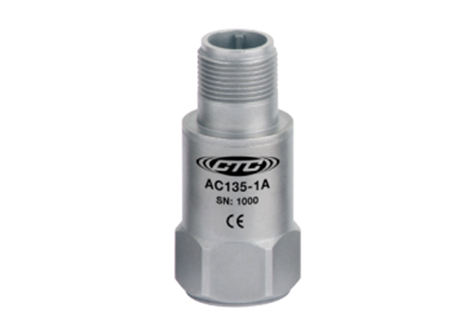

AC135
Description Low Frequency Accelerometer, Top Exit Connector / Cable, 500 mV/g Sensitivity 500 mV/g Frequency Response (±3dB) 12-180,000 CPM Dynamic Range ± 10 g, peak Max Temp 121°C
AC133
Description Low Frequency Accelerometer, Top Exit Connector, 500 mV/g Sensitivity 500 mV/g Frequency Response (±3dB) 6-600,000 CPM Dynamic Range ± 10 g, peak Max Temp 121°C
AC134
Description Low Frequency Accelerometer, Side Exit Connector, 500 mV/g Sensitivity 500 mV/g Frequency Response (±3dB) 6-480,000 CPM Dynamic Range ± 10 g, peak Max Temp 121°C
Sensores triaxiales y biaxiales

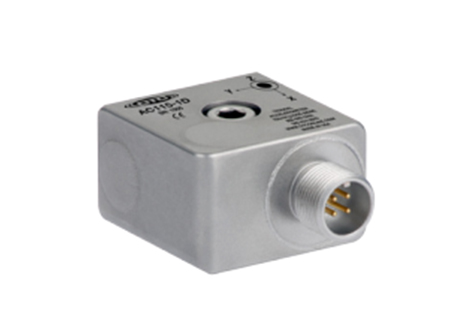

AC115
Description Low Cost Triaxial Accelerometer, Connector / Cable, 100 mV/g Sensitivity 100 mV/g Frequency Response (±3dB) 60-390,000 CPM Dynamic Range ± 50 g, peak Max Temp 121°C

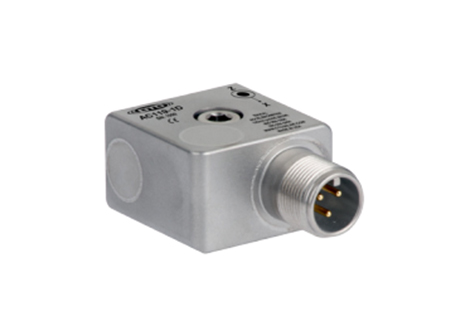

AC119
Description Biaxial accelerometer, 100 mV/g, with X and Z axis Sensitivity 100 mV/g Frequency Response (±3dB) 60-390,000 CPM Dynamic Range ± 50 g, peak Max Temp 121°C

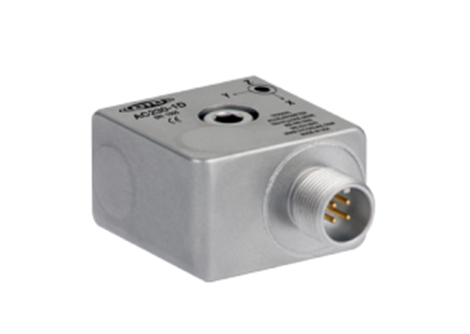

AC230
Description Premium Series Triaxial Accelerometer, Connector / Cable, 100 mV/g Sensitivity 100 mV/g Frequency Response (±3dB) 36-600,000 CPM Dynamic Range ± 50 g, peak Max Temp 121°C
Sensores para alta temperatura
AC207
Description High Temperature Accelerometer, Top Exit Connector/Cable, 100 mV/g Sensitivity 100 mV/g Frequency Response (±3dB) 60-600,000 CPM Dynamic Range ±80 g, peak Max Temp 150°C

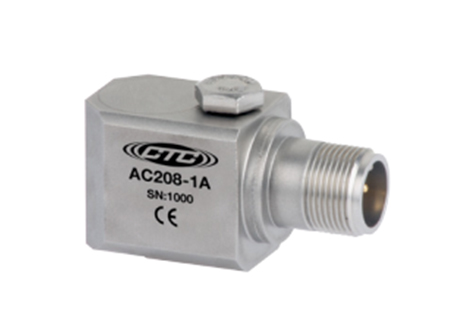

AC208
Description High Temperature Accelerometer, Side Exit Connector / Cable, 100 mV/g Sensitivity 100 mV/g Frequency Response (±3dB) 60-480,000 CPM Dynamic Range ± 80 g, peak Max Temp 150°C

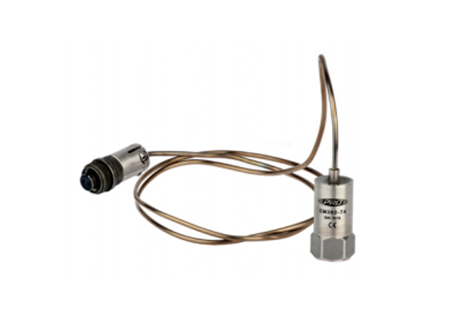

CM362
Description High Temperature Accelerometer, 650F (343 C) Top Exit Flexible Hardline Integral Cable 25 pC/g Sensitivity 25 pC/g Frequency Response (±3dB) N/A Dynamic Range + - 50 g, peak when combined with HA602-100A Max Temp 343°C 650°F
HA602-A100
Description Charge Amplifier for use with CM362 High Temperature Accelerometers, 100 mV/g Acceleration Output Sensitivity 100 mV/g Frequency Response (±3dB) N/A Dynamic Range + - 50 g, peak Max Temp 121°C 250°F
Cajas de conexionado de múltiples canales para conexión a analizadores

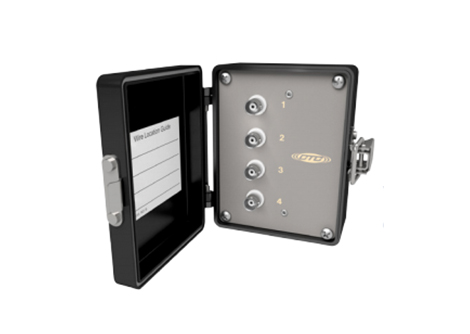

MX502
Description Mini-MAXX Enclosure 1-4 Channels Inputs Conduit or Cord Grips Rating NEMA 4X Resistance Resistant to Hose Directed Fluid and Corrosion Dimensions 56.6 x 89.9 x 115 mm

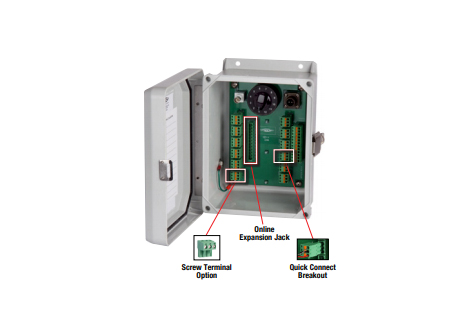

MMX1000
Description Modular MAXX Box Inputs Terminal Block 3 Inputs per Channel (±Shield) Rating NEMA 4X (IP66) Resistance Resistant to Hose Directed Fluid and Corrosion Dimensions 196 x 196 x 173 mm
SB102
Description Fiberglass Switch Boxes 4-12 Channel Inputs Terminal Block 3 Inputs per Channel (+ - Shield) Rating NEMA 4X Resistance Resistant to Hose Directed Fluid and Corrosion Dimensions 196 x 244 x 117 mm
